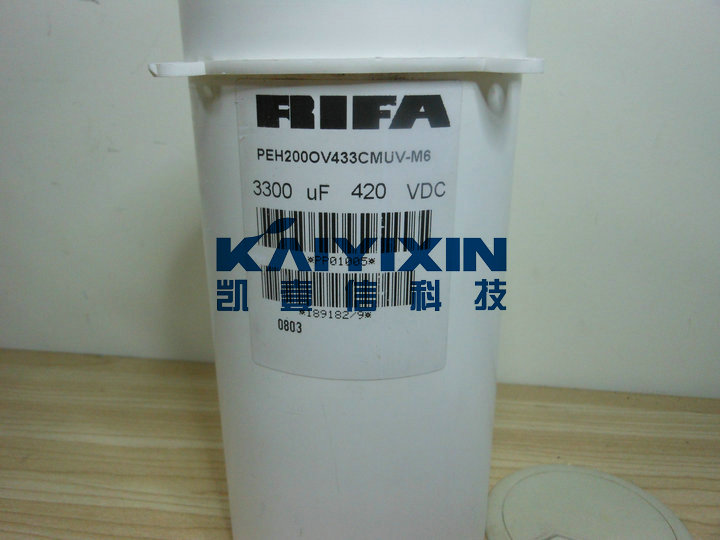

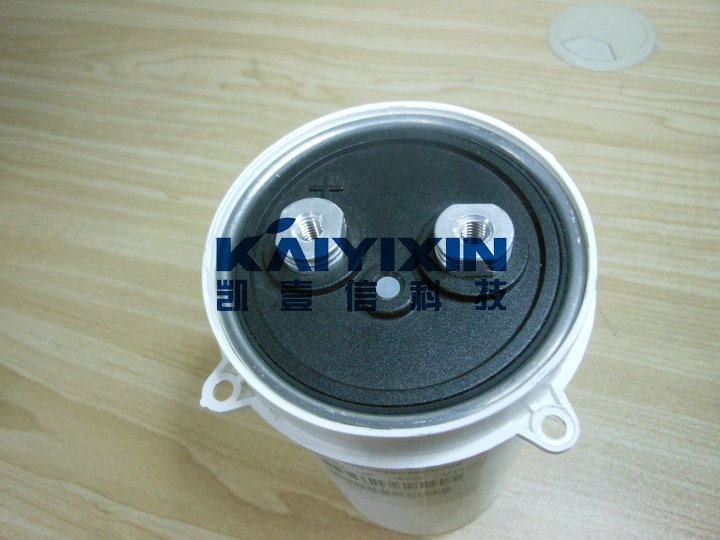

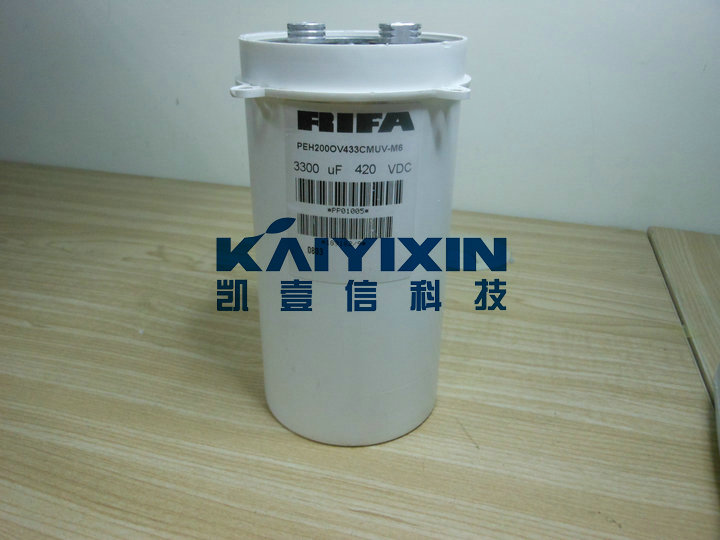

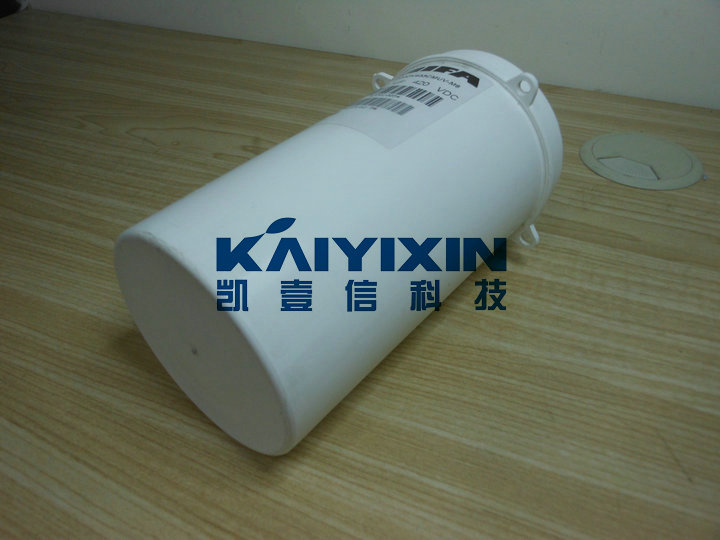

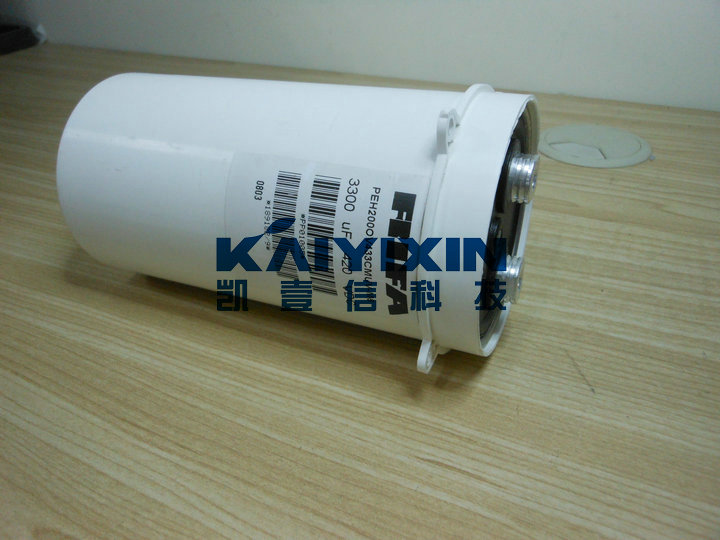

PEH200OV433CMUV-M6 420VDC 3300uF EVOX RIFA Capacitor

Product Model:

PEH200OV433CMUV-M6 420VDC

Brand:

EVOX RIFA

Min.Order Quantity:

1/pieces

Port:

Shenzhen

Payment Terms:

T/T, paypal, Western Union

PDF Down

Product Details
Transaction Details

#	Attribute	Parameter
1	Origin	Sweden
2	Nominal Voltage	420VDC
3	Capacity	3300uF

Overview

EVOX RIFA's (KEMET) PEH200 Series of capacitors has a polarized allwelded design, heavy duty screw terminals, extended cathode construction, safety vent, and plastic insulation. The sealing system is designed for electrolyte leakage-free operation and a very low gas-diffusion rate of electrolyte. Mechanical contact between the winding and aluminum case allows excellent heat transfer from the winding hot-spot to the ambient, which means cooler operation and very high current ratings.

Benefits

• High CV value
• Long life, up to 29,000 hours at +85ºC (VR, IR applied)
• Low ESR and ESL
• Compact size

• Optimized designs available upon request

Applications

Typical applications for EVOX RIFA's (KEMET) PEH200 capacitor include uninterruptible power supplies (UPS), ground power units (GPU), welding equipment, and drives where high current ratings and compact size are important.
