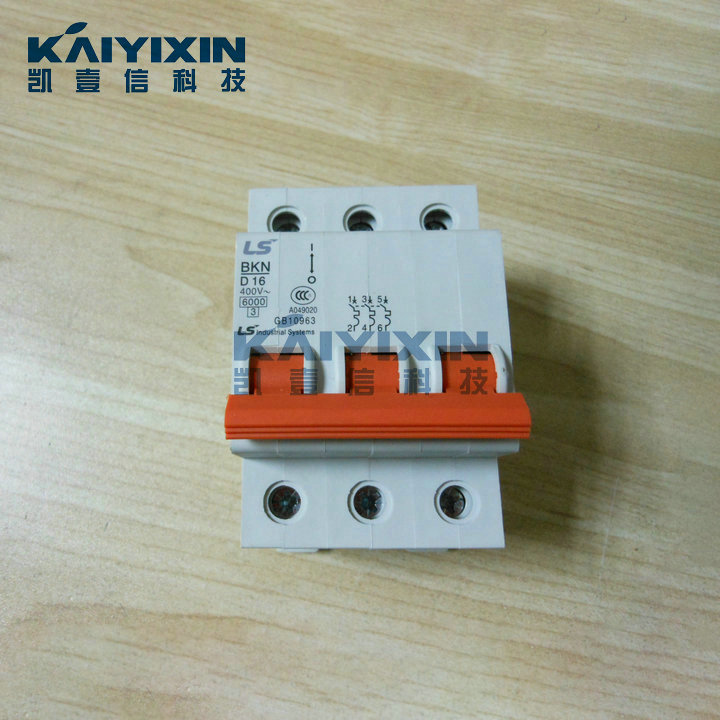

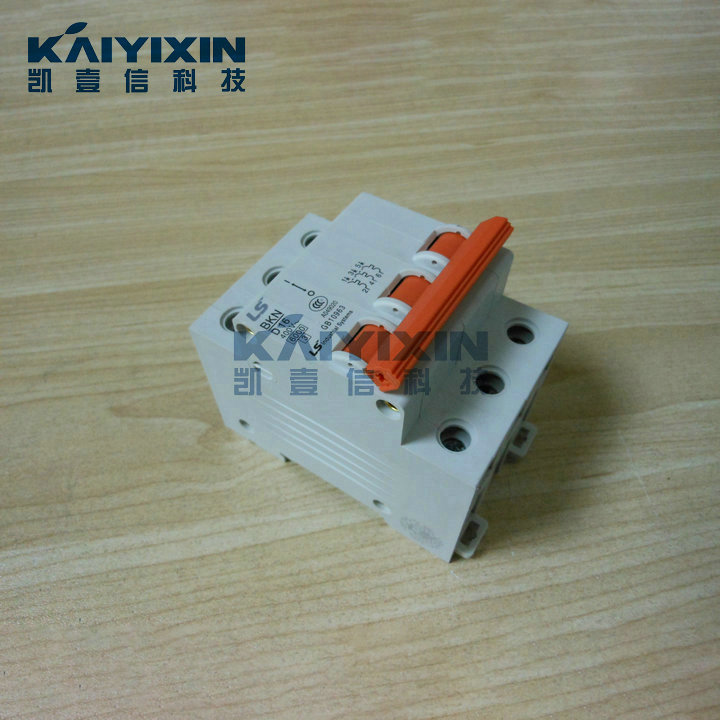

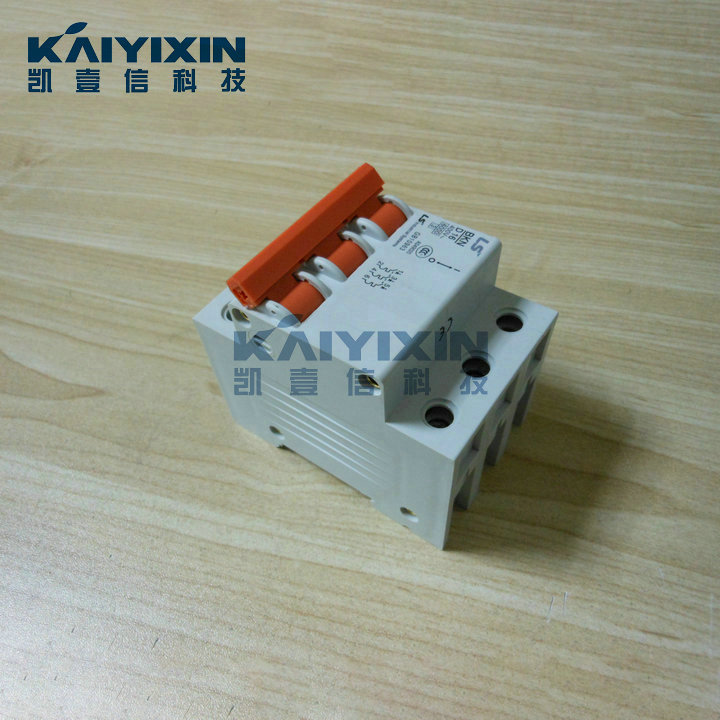

BKN D16A 3P LS/LG Miniature Circuit Breakers New and Original In Stock
BKN D16A 3P
1/pieces
Shenzhen
T/T, paypal, Western Union
PDF Down
| # | Attribute | Parameter |
|---|---|---|
| 1 | Current rating | 16A |
| 2 | Voltage rating | 230-400VAC |
| 3 | Power | 50/60Hz |
| 4 | Tripping Curve | D |
| 5 | Tropicalization | relative humidity 95% at 55°C |
BKN D16A 3P LS/LG Miniature Circuit Breakers New and Original In Stock
Circuit protector
Features
• current rating: 1 to 63 A
• voltage rating: 230-400 V AC
• fast closing contacts
• number of operating cycles (O-C); 20000
• impulse withstand voltage (U imp.): 6 kV
• tropicalization: treatment 2 (relative humidity 95% at 55°C)
• tripping characteristics:
B curve: the magnetic releases operate between 3 and 5 In
C curve: the magnetic releases operate between 5 and 10 In
D curve: the magnetic releases operate between 10 and 14 In
• in domestic installation;
• in commercial and industrial electrical distribution systems;
• D curve: more particularly adapted for installations with high transient currents (LV/LV transformers, motors,...)
