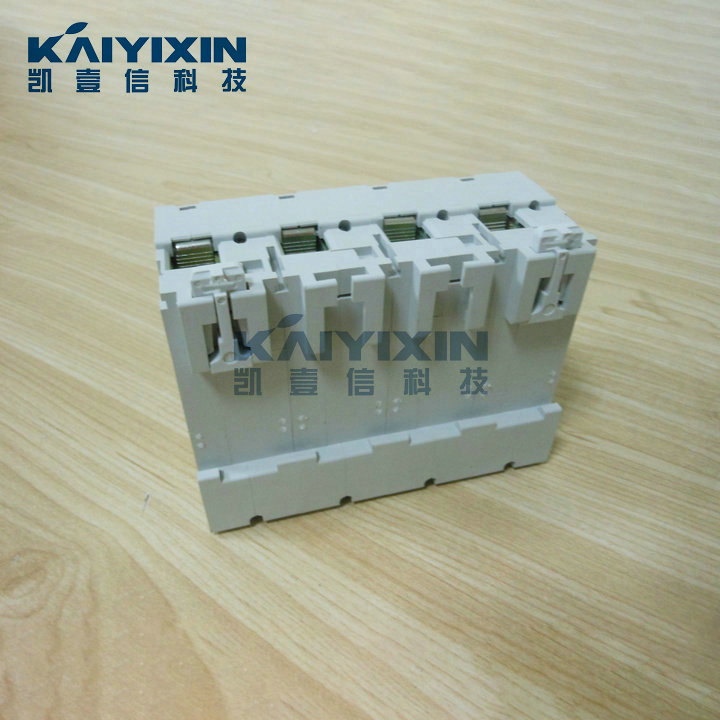

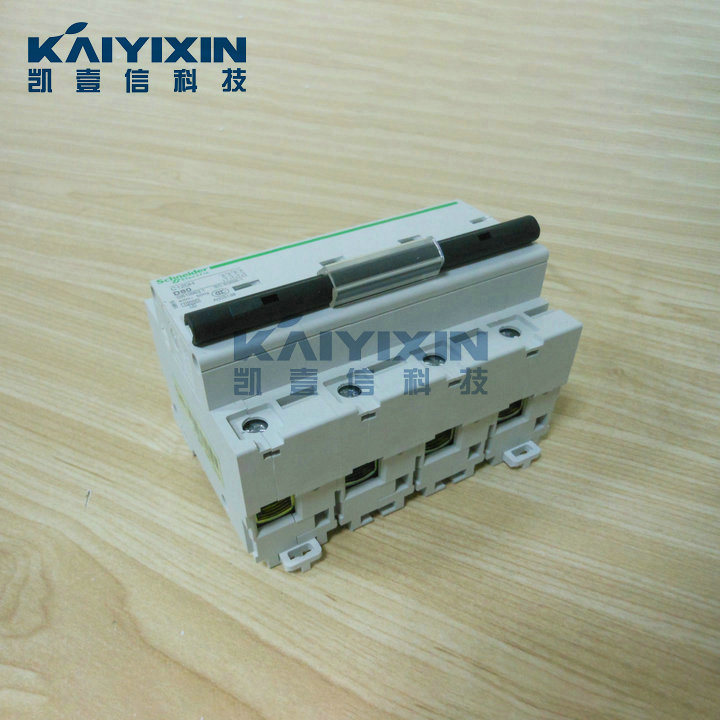

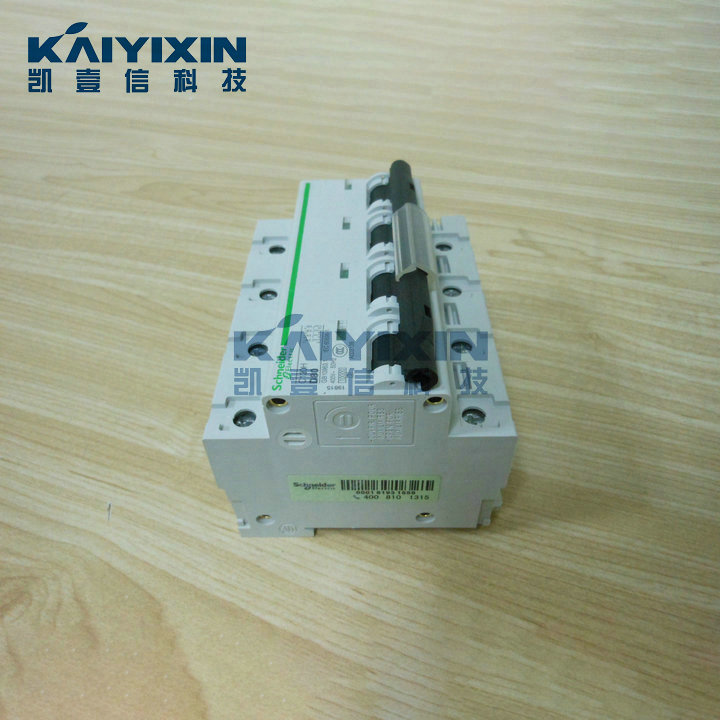

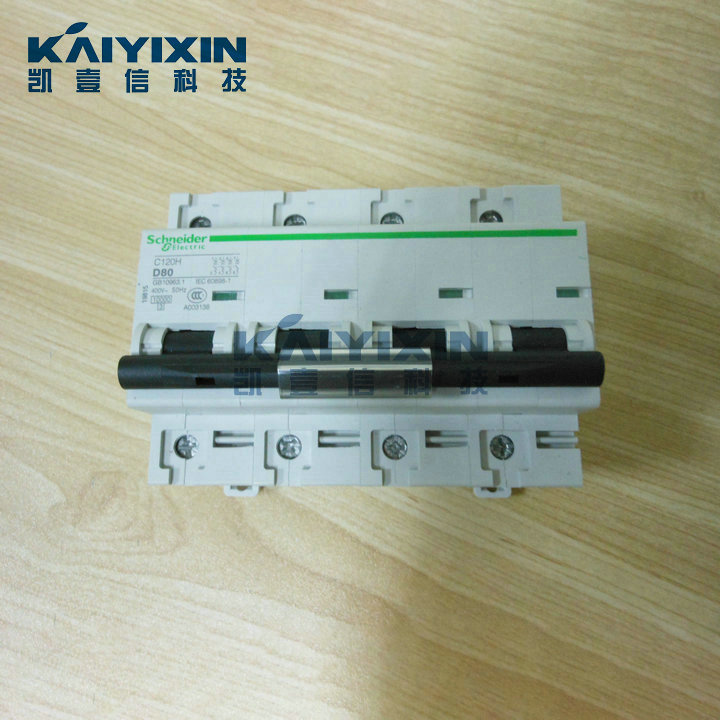

C120H D80 4P Schneider Miniature Circuit Breakers New and Original In Stock

Product Model:

C120H D80 4P

Brand:

schneider

Min.Order Quantity:

1/pieces

Port:

Shenzhen

Payment Terms:

T/T, paypal, Western Union

PDF Down

Product Details
Transaction Details

#	Attribute	Parameter
1	Current rating	80A
2	Voltage rating	230-400VAC
3	Power	50/60Hz
4	Tripping Curve	D
5	Tropicalization	relative humidity 95% at 55°C

C120H D80 4P Schneider Miniature Circuit Breakers New and Original In Stock
Circuit protector

Features

• current rating: 10 to 125 A
• voltage rating: 440 V AC
• fast closing contacts
• insulation voltage Ui: 500 V
• impulse withstand voltage (U imp.): 6 kV
• tropicalization: treatment 2 (relative humidity 95% at 55°C)
• tripping characteristics:
B curve: the magnetic releases operate between 3 and 5 In
C curve: the magnetic releases operate between 5 and 10 In
D curve: the magnetic releases operate between 10 and 14 In

APPLICATION

control and protection of circuits against overloads and short-circuits.
• in domestic installation;
• in commercial and industrial electrical distribution systems;
• D curve: more particularly adapted for installations with high transient currents (LV/LV transformers, motors,...)
