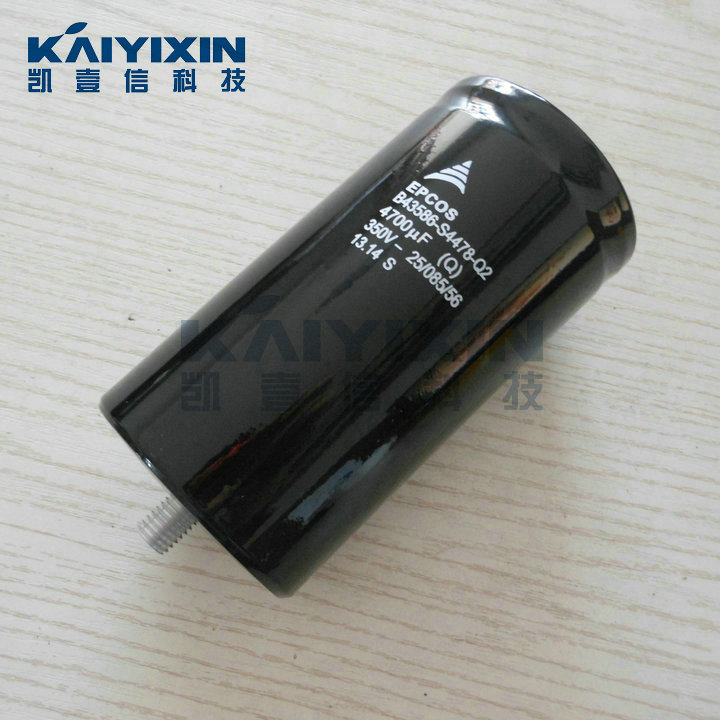

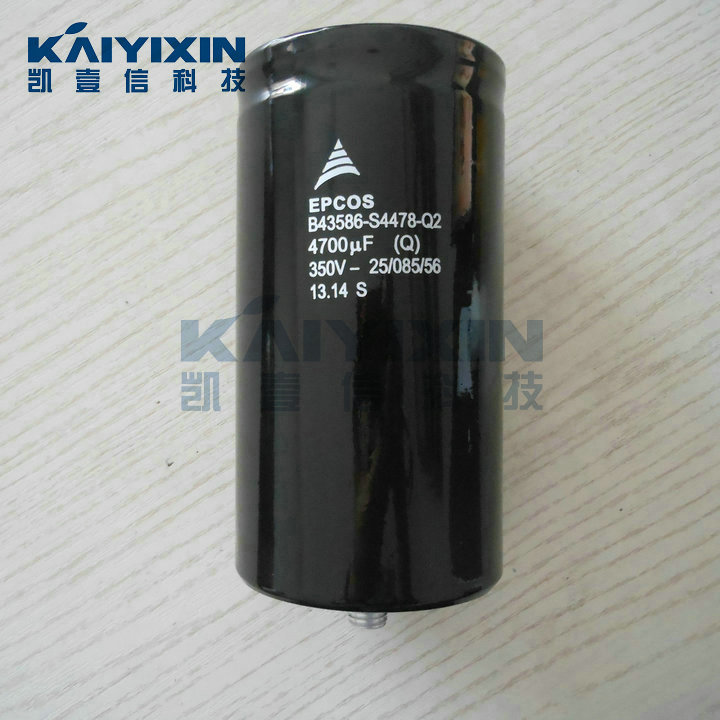

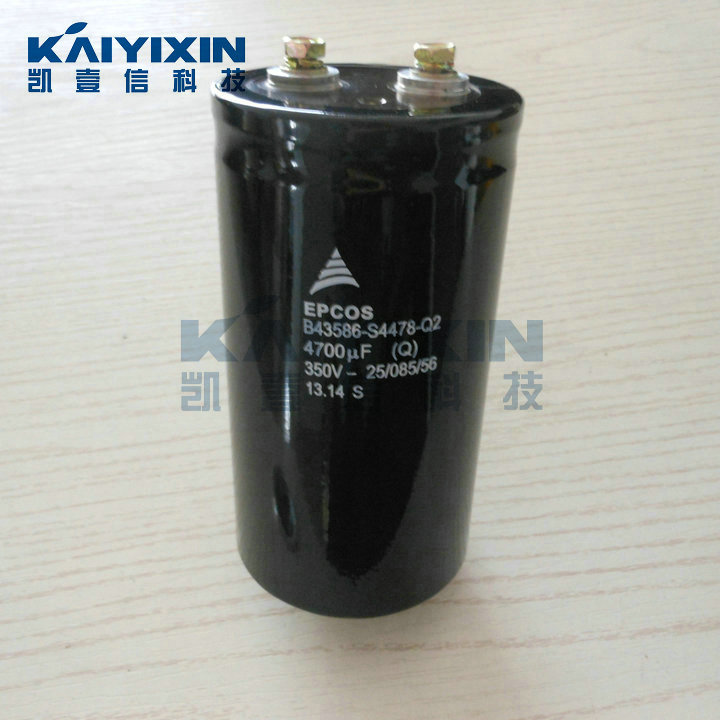

B43586-S4478-Q2 4700uF 350V M6 EPCOS Aluminum Electrolytic Capacitors

Product Model:

B43586-S4478-Q2(M6)

Brand:

epcos

Min.Order Quantity:

1/pieces

Port:

Shenzhen

Payment Terms:

T/T, paypal, Western Union

PDF Down

Product Details
Transaction Details

#	Attribute	Parameter
1	Origin	Germany
2	Voltage	350V
3	Capacity	4700uF
4	Operating temperature range	– 40 to +85°C
5	Capacitance Tolerance	±20% at 120Hz, 20°C
6	Screw Terminals	M6

B43586-S4478-Q2 4700uF 350V M6 EPCOS Aluminum Electrolytic Capacitors

EPCOS Aluminum electrolytic capacitors
Capacitors with screw terminals
Long-life grade capacitors

Features

• Extended useful life, high reliability
• Good electrical characteristics and small dimensions
• Extremely high ripple current capability
• All-welded construction ensures reliable electrical contact
• Version with optimized construction for base cooling (2-pad solution) available
• Version with low-inductance design available
• Self-extinguishing electrolyt

Construction

• Charge-discharge proof, polar
• Aluminum case with insulating sleeve

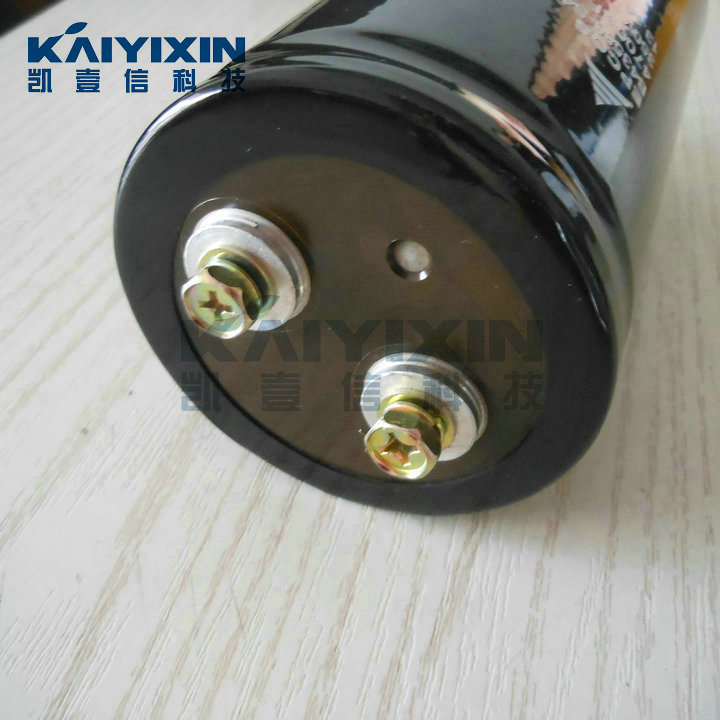

• Poles with screw terminal connections
• Mounting with ring clips, clamps or threaded stud
• The bases of types with threaded stud and d <=76.9 mm are not insulated, types with d = 91 mm have fully insulated bases
