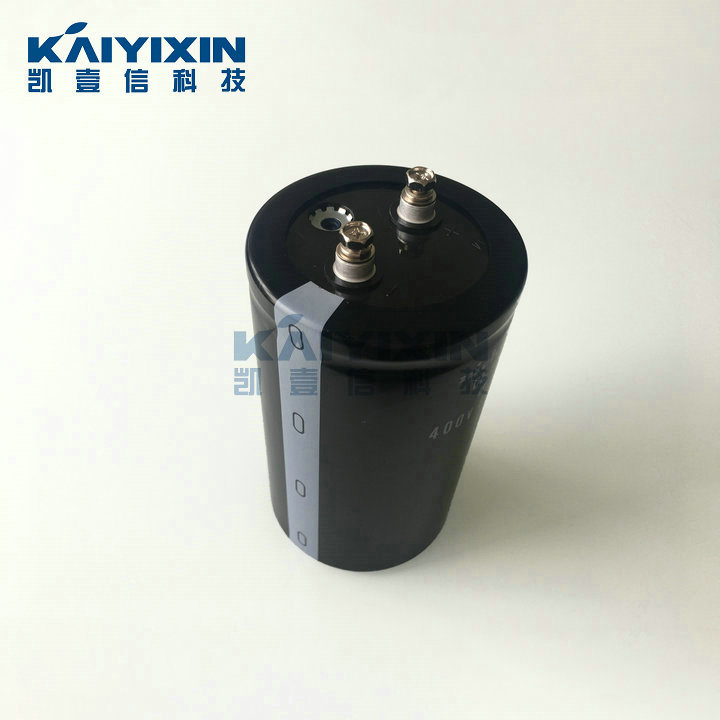

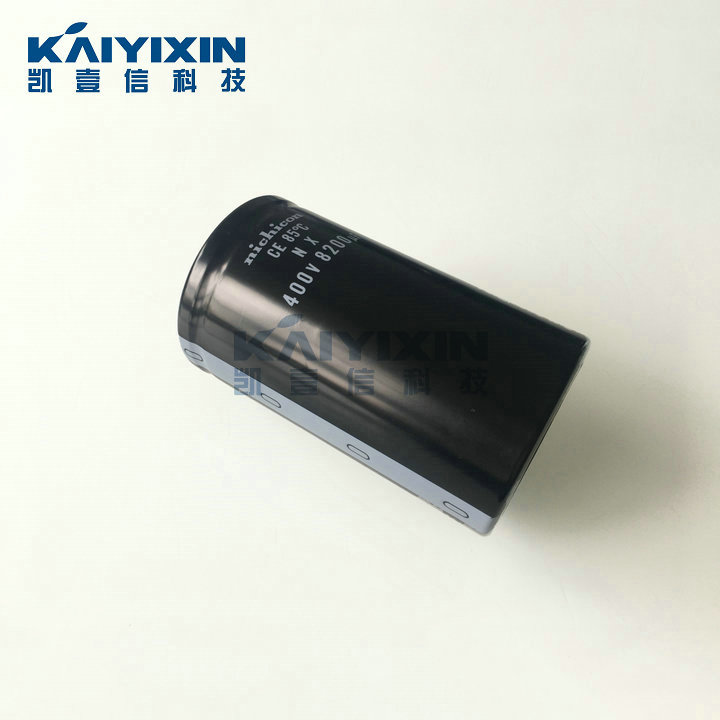

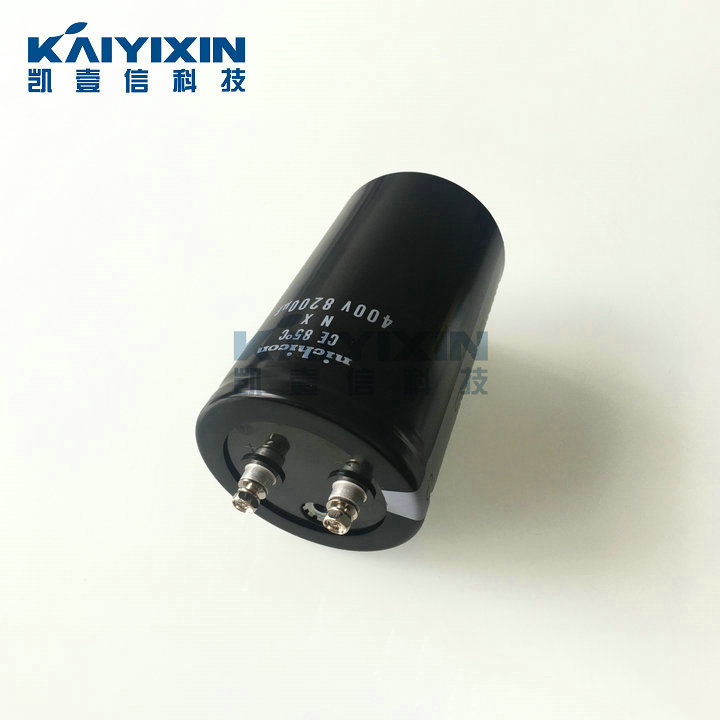

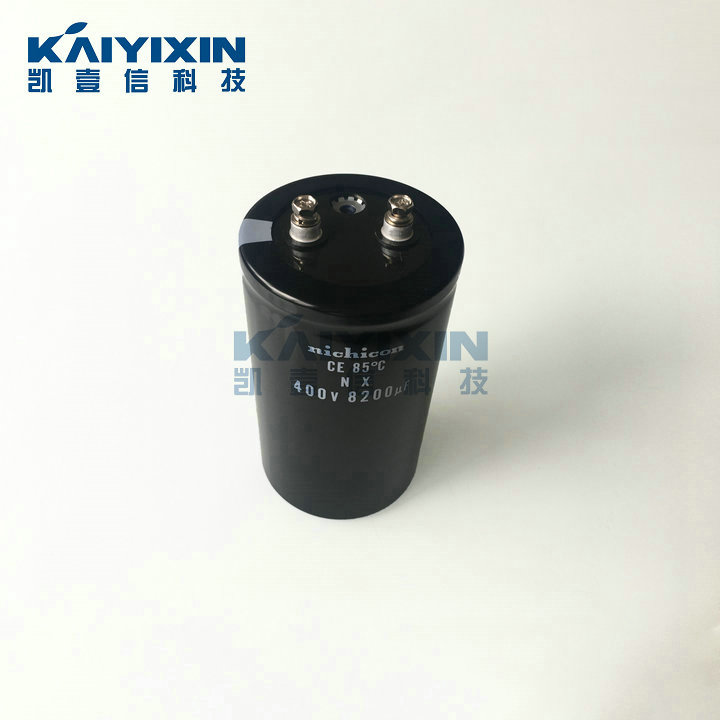

Nichicon NX 400V 8200uF Capacitor (Nichicon NX PDF download)

Quality Assured Quick delivery New and Original

Contact Supplier PDF Down

• Product Details
• Transaction Details

#	Attribute	Parameter
1	Nominal voltage	400V
2	Capacitor	8200uF
3	Installation	Screw Terminal Type

nichicon NX series ALUMINUM ELECTROLYTIC CAPACITORS

• Screw Terminal Type, 85°CHigh Speed charge discharge

• High ripple longer life.

• Suited for use in industrial power supplies for inverter circuitry, etc.

• High ripple current, extra-high voltage application.

• High reliability, long life for 20,000 hours application of rated ripple current at +85°C.

• Extended range up to φ100 × 250L size.

• Flame retardant electroly to type available.

• Compliant to the RoHS directive (2002/95/EC).

350V	400V	450V
LNX2V102MSEF	LNX2G102MSEF	LNX2W102MSEF
LNX2V122MSEF	LNX2G122MSEF	LNX2W122MSEF
LNX2V152MSEF	LNX2G152MSEF	LNX2W152MSEF
LNX2V182MSEF	LNX2G182MSEF	LNX2W182MSEF
LNX2V222MSEF	LNX2G222MSEF	LNX2W182MSEG
LNX2V272MSEF	LNX2G222MSEG	LNX2W222MSEG
LNX2V272MSEG	LNX2G272MSEG	LNX2W222MSEH
LNX2V332MSEF	LNX2G272MSEH	LNX2W272MSEG
LNX2V332MSEG	LNX2G332MSEG	LNX2W272MSEH
LNX2V392MSEG	LNX2G332MSEH	LNX2W332MSEG
LNX2V392MSEH	LNX2G392MSEG	LNX2W332MSEH
LNX2V472MSEG	LNX2G392MSEH	LNX2W392MSEG
LNX2V472MSEH	LNX2G472MSEG	LNX2W392MSEH
LNX2V562MSEG	LNX2G472MSEH	LNX2W472MSEG
LNX2V562MSEH	LNX2G562MSEG	LNX2W472MSEH
LNX2V682MSEG	LNX2G562MSEH	LNX2W562MSEH
LNX2V682MSEH	LNX2G682MSEH	LNX2W562MSEJ
LNX2V822MSEH	LNX2G682MSEJ	LNX2W682MSEH
LNX2V822MSEJ	LNX2G822MSEH	LNX2W682MSEJ
LNX2V103MSEH	LNX2G822MSEJ	LNX2W822MSEH
LNX2V103MSEJ	LNX2G103MSEH	LNX2W822MSEJ
LNX2V123MSEH	LNX2G103MSEJ	LNX2W103MSEJ
LNX2V123MSEJ	LNX2G123MSEJ	LNX2W123MSEJ
LNX2V153MSEJ	LNX2G153MSEK	LNX2W153MSEK
LNX2V183MSEJ	LNX2G183MSEK	LNX2W183MSEK
LNX2V223MSEK	LNX2G223MSEK
LNX2V273MSEK
500V	550V	630V
LNX2H102MSEF	LNX2L102MSEF	LNX2J102MSEG
LNX2H122MSEG	LNX2L122MSEG	LNX2J122MSEH
LNX2H152MSEG	LNX2L152MSEG	LNX2J152MSEH
LNX2H182MSEG	LNX2L182MSEH	LNX2J182MSEH
LNX2H222MSEG	LNX2L222MSEH	LNX2J222MSEJ
LNX2H272MSEH	LNX2L272MSEH	LNX2J272MSEJ
LNX2H332MSEH	LNX2L332MSEH	LNX2J332MSEJ
LNX2H392MSEH	LNX2L392MSEJ	LNX2J392MSEJ
LNX2H472MSEJ	LNX2L472MSEJ	LNX2J472MSEK
LNX2H562MSEJ	LNX2L562MSEJ	LNX2J562MSEK
LNX2H682MSEJ	LNX2L682MSEJ
LNX2H822MSEJ	LNX2L822MSEK
LNX2H103MSEK	LNX2L103MSEK
LNX2H123MSEK
