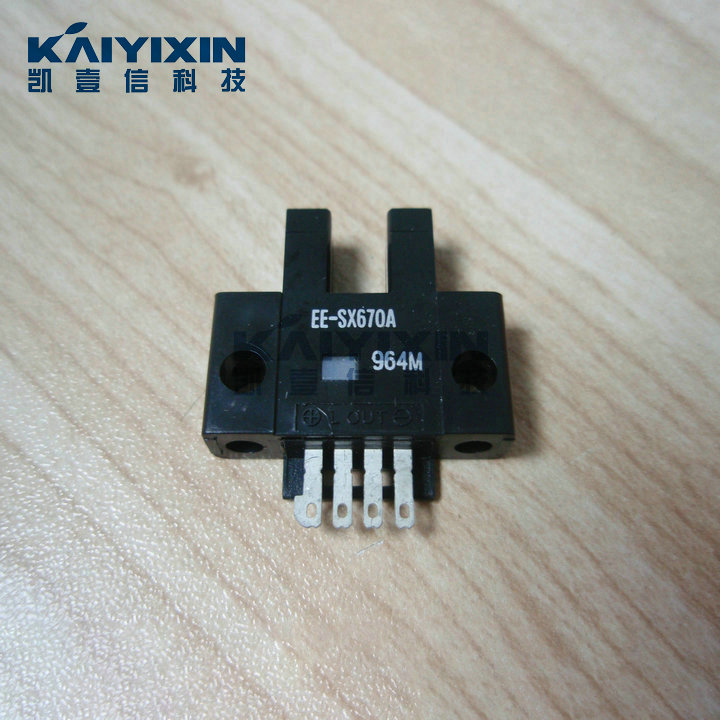

EE-SX670A OMRON Slot-type Photoelectric Sensor New and Original In Stock
EE-SX670A
1/pieces
Shenzhen
T/T, paypal, Western Union
PDF Down
| # | Attribute | Parameter |
|---|---|---|
| 1 | Warranty | 1 year |
| 2 | Voltage | 12-24VDC |
OMRON Slot-type Photomicro sensor EE-SX
Photomicro sensor with 50- to 100-mA direct switching capacity for built-in application.
• Series includes models that enable switching between dark-ON and light-ON operation.
• Response frequency as high as 1 kHz.
• Easy operation monitoring with bright light indicator.
• Wide operating voltage range: 5 to 24 VDC
• Models in which the light indicator turns ON for dark-ON operation are also available.
• A wide range of variations in eight different shapes.
• Flexible robot cable is provided as a standard feature.
More Products
| Standard | |
| NPN output | PNP output |
| Connector models | Connector models |
| EE-SX670 | EE-SX670P |
| EE-SX670A | EE-SX670R |
| EE-SX470 | EE-SX470P |
| Pre-wired models | Pre-wired models |
| EE-SX670-WR | EE-SX670P-WR |
| Models with connectors | Models with connectors |
| EE-SX670-CJ1-R | EE-SX670P-CJ1-R |
| L-shaped | |
| NPN output | PNP output |
| Connector models | Connector models |
| EE-SX671 | EE-SX671P |
| EE-SX671A | EE-SX671R |
| EE-SX471 | EE-SX471P |
| Pre-wired models | Pre-wired models |
| EE-SX671-WR | EE-SX671P-WR |
| Models with connectors | Models with connectors |
| EE-SX671-CJ1-R | EE-SX671P-CJ1-R |
| T-shaped, slot center 7 mm | |
| NPN output | PNP output |
| Connector models | Connector models |
| EE-SX672 | EE-SX672P |
| EE-SX672A | EE-SX672R |
| EE-SX472 | EE-SX472P |
| Pre-wired models | Pre-wired models |
| EE-SX672-WR | EE-SX672P-WR |
| Models with connectors | Models with connectors |
| EE-SX672-CJ1-R | EE-SX672P-CJ1-R |
| Close-mounting | |
| NPN output | PNP output |
| Connector models | Connector models |
| EE-SX673 | EE-SX673P |
| EE-SX673A | EE-SX673R |
| EE-SX473 | EE-SX473P |
| EE-SX674 | EE-SX674P |
| EE-SX674A | EE-SX674R |
| EE-SX474 | EE-SX474P |
| Pre-wired models | Pre-wired models |
| EE-SX673-WR | EE-SX673P-WR |
| EE-SX674-WR | EE-SX674P-WR |
| Models with connectors | Models with connectors |
| EE-SX673-CJ1-R | EE-SX673P-CJ1-R |
| EE-SX674-CJ1-R | EE-SX674P-CJ1-R |
| T-shaped, slot center 10 mm | F-shaped |
| NPN output | NPN output |
| Connector models | Connector models |
| EE-SX675 | EE-SX676 |
| Pre-wired models | Pre-wired models |
| EE-SX675-WR | EE-SX676-WR |
| Models with connectors | Models with connectors |
| EE-SX675-CJ1-R | EE-SX676-CJ1-R |
| PNP output | |
| PNP output | Connector models |
| Connector models | EE-SX676P |
| EE-SX675P | Pre-wired models |
| Pre-wired models | EE-SX676P-WR |
| EE-SX675P-WR | Models with connectors |
| Models with connectors | EE-SX676P-CJ1-R |
| EE-SX675P-CJ1-R | |
| R-shaped | |
| NPN output | PNP output |
| Connector models | Connector models |
| EE-SX677 | EE-SX677P |
| Pre-wired models | Pre-wired models |
| EE-SX677-WR | EE-SX677P-WR |
| Models with connectors | Models with connectors |
| EE-SX677-CJ1-R | EE-SX677P-CJ1-R |
