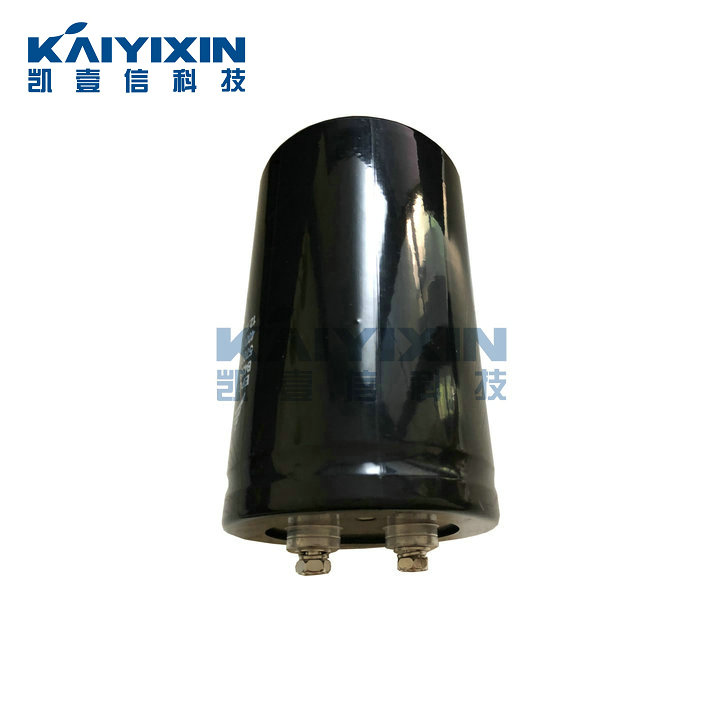

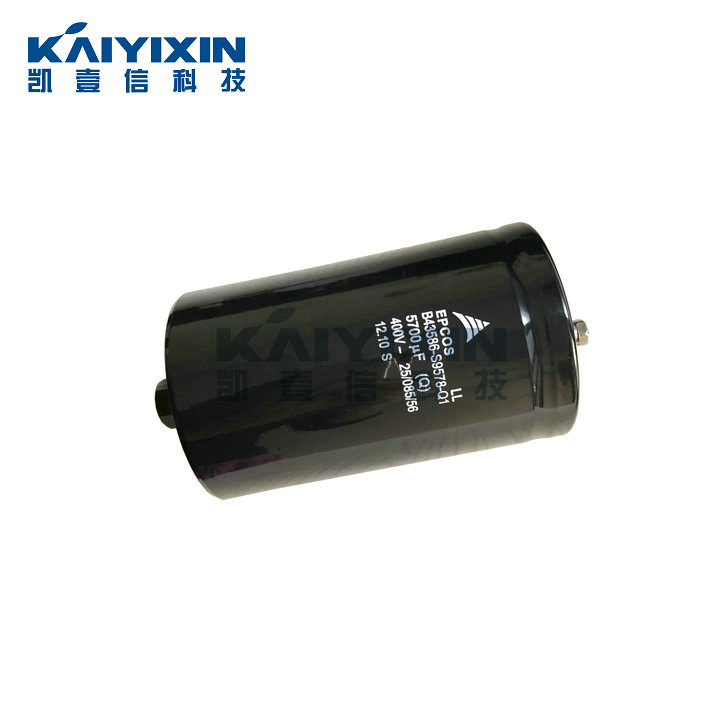

B43586-S9578-Q1 5700uF 400V EPCOS Capacitor(B43586 PDF)

EPCOS Aluminum electrolytic capacitors
Capacitors with screw terminals
Long-life grade capacitors

Features

• Extended useful life, high reliability
• Good electrical characteristics and small dimensions
• Extremely high ripple current capability
• All-welded construction ensures reliable electrical contact
• Version with optimized construction for base cooling (2-pad solution) available
• Version with low-inductance design available
• Self-extinguishing electrolyt

Construction

• Charge-discharge proof, polar
• Aluminum case with insulating sleeve
• Poles with screw terminal connections
• Mounting with ring clips, clamps or threaded stud
• The bases of types with threaded stud and d <=76.9 mm are not insulated, types with d = 91 mm have fully insulated bases

Applications

• Frequency converters
