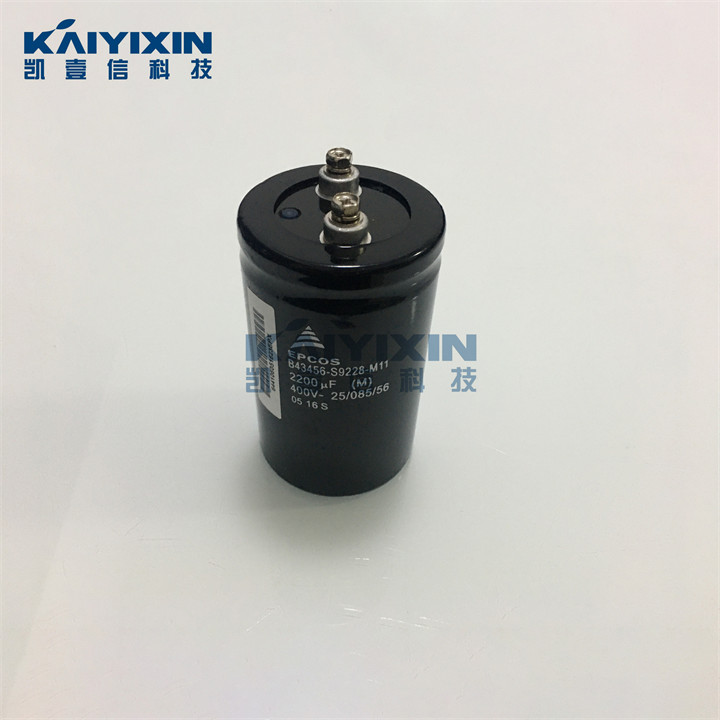

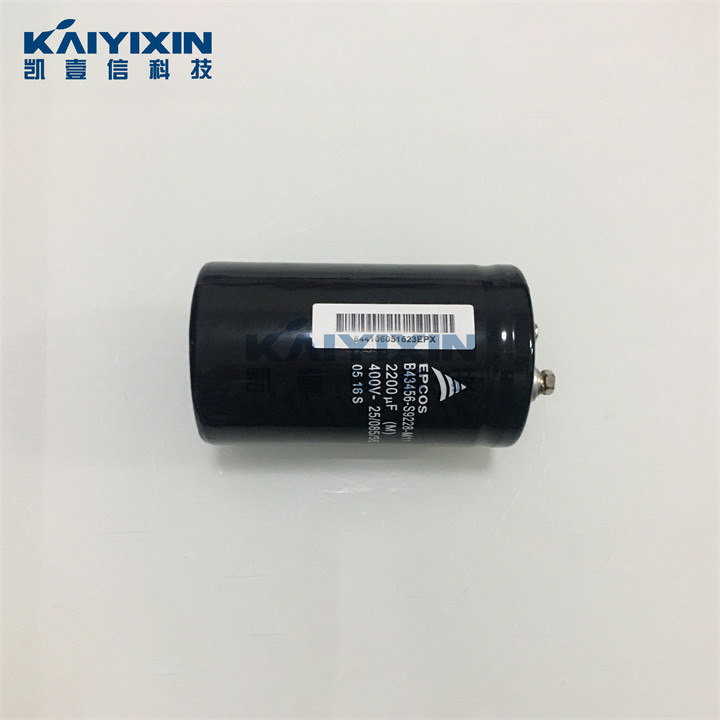

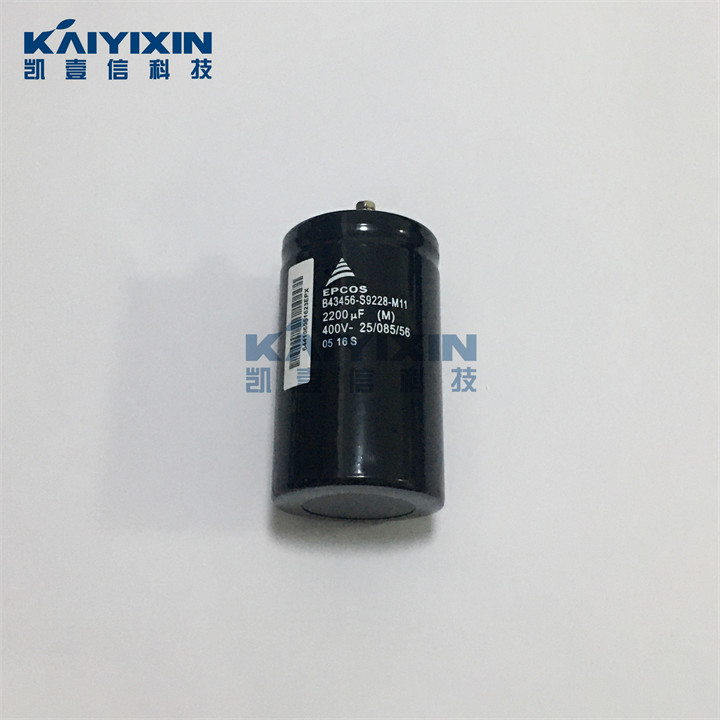

B43456-S9228-M11 2200uF 400V EPCOS Capacitor (B43456 PDF)

Product Model:

B43456-S9228-M11

Brand:

epcos

Min.Order Quantity:

1/pieces

Port:

Shenzhen

Payment Terms:

T/T, paypal, Western Union

PDF Down

Product Details
Transaction Details

#	Attribute	Parameter
1	Origin	Germany
2	Voltage	400V
3	Capacity	2200uF
4	Operating temperature range	– 40 to +85°C
5	Capacitance Tolerance	±20% at 120Hz, 20°C
6	Installation	Screw Terminal Type(M5)
7	Fixation	Ring clip/ Clamp mounting

B43456-S9228-M11 2200uF 400V EPCOS Capacitor (B43456 PDF)

Features

• Long useful life
• High CV product, i.e. extremely compact
• High reliability and high ripple current capability
• All-welded construction ensures reliable electrical contact
• Version with optimized construction for base cooling (heat sink mounting) available
• Version with low-inductance design available
• Self-extinguishing electrolyte
• RoHS-compatible

Construction

• Charge-discharge proof, polar

• Aluminum case with insulating sleeve

• Poles with screw terminal connections

• Mounting with ring clips, clamps or threaded stud

• The bases of types with threaded stud and d <=76.9 mm are not insulated, types with d = 91 mm have fully insulated bases

Applications

• Frequency converters

• Uninterruptible power supplies

• Professional power supplies
