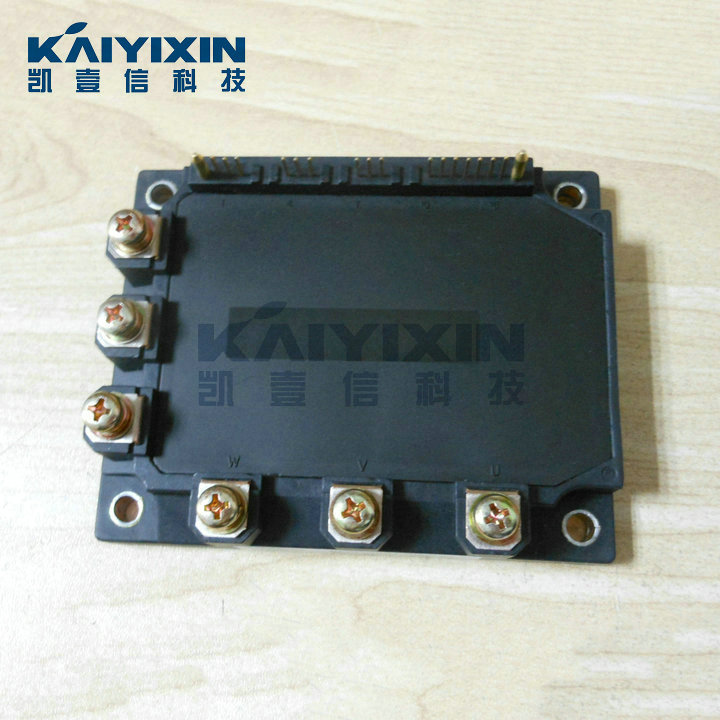

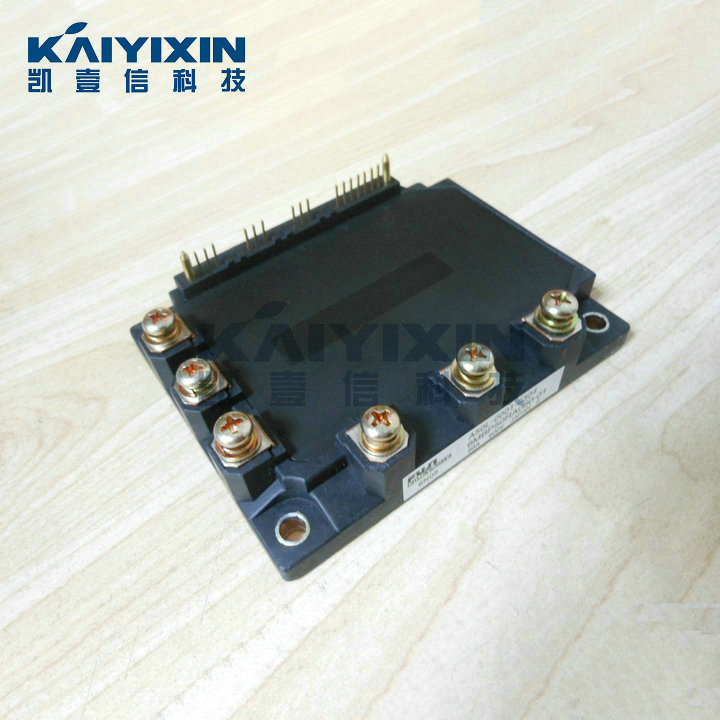

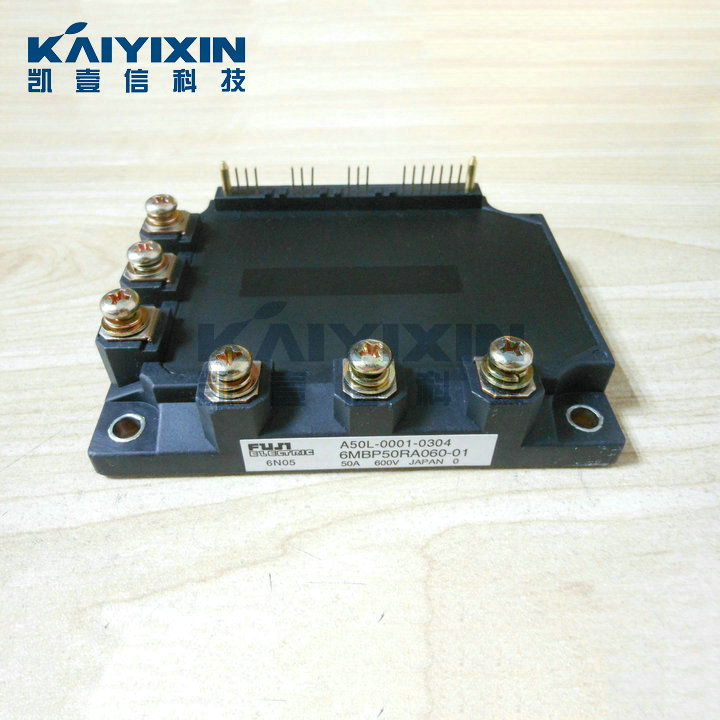

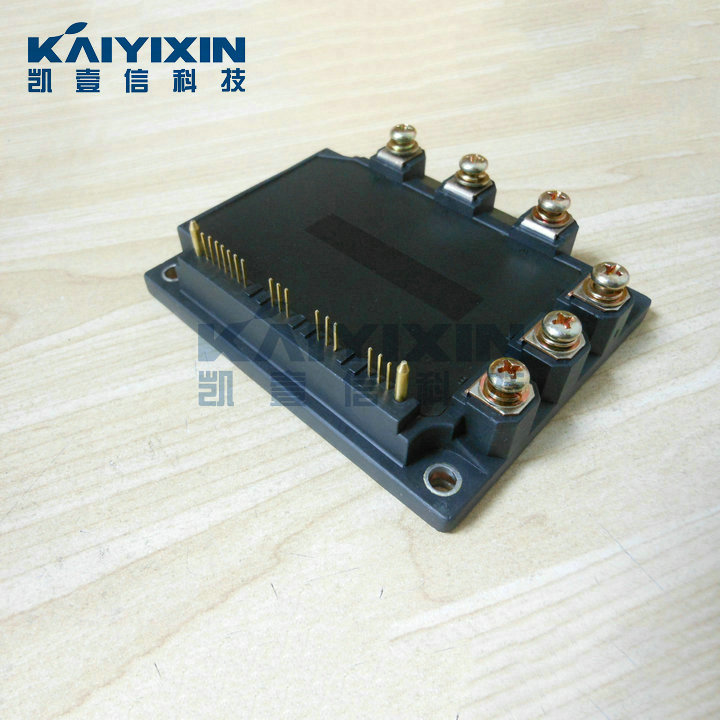

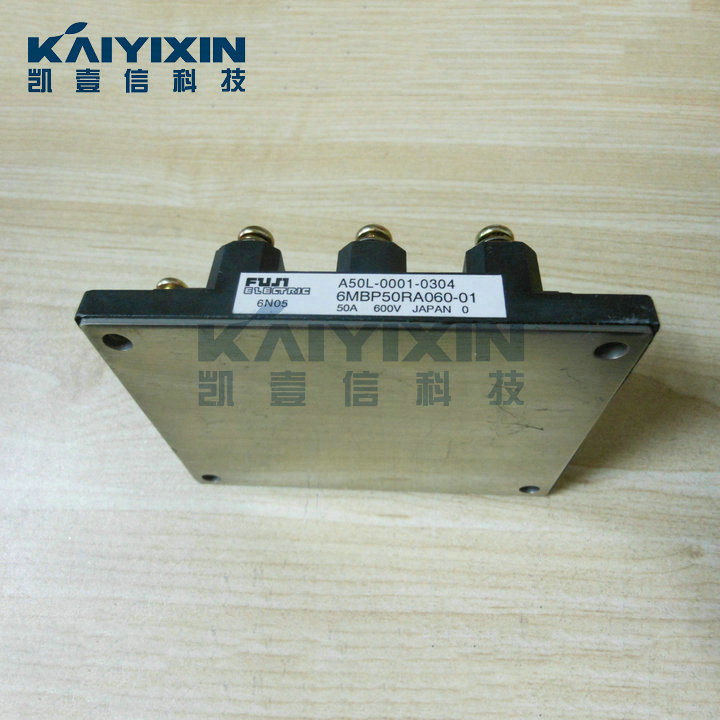

6MBP50RA060-01 FUJI IGBT Module (6MBP50RA060-01 PDF download)

FUJI IPM Modules

Features:
• Low power loss and soft switching
• Converter Diode Bridge Dynamic Brake Circuit
• Compatible with existing IPM-N series packages
• High performance and high reliability IGBT with overheating Protection
• Higher reliability because of a big decrease in number of parts in built-in control circuit
• Temperature protection provided by directly detecting the junction temperature of the IGBTs

Applications:
• Inverter for motor drive
• AC and DC servo drive amplifier
• UPS (Uninterruptible power supply)
